Mechanism

Actuator

MECA DBAX

Maintenance document number : NM120

Actuators are available for individual purchase to enable modular component stocking or quick replacement during maintenance operations, without requiring full valve replacement.Repairable pneumatic actuator designed for DEFINOX DBAX series ball valves. The actuator is supplied with an integrated detection cam and a drive shaft enabling direct mounting onto the valve drive square.Depending on the selected configuration, the actuator can be delivered pre-equipped with a SORIO Basic wired control unit or SORIO control tops in wired, AS-i or IO-Link versions for valve position monitoring and control.


5-year manufacturer warranty, in accordance with the terms defined in the warranty document.

Handle DPX

MECA DPX

Maintenance document number : NM039

Handles are available for individual purchase to enable modular component stocking and quick replacement during maintenance operations, without requiring full valve replacement.The stainless steel trigger handle, lockable and multi-position, is designed for DEFINOX DPX and DPX EBC manual butterfly valves. Its multi-position system (5 intermediate positions + open / closed) ensures precise flow adjustment, while the padlock locking function secures the valve position during maintenance operations.The modular design ensures full interchangeability and allows quick handle replacement without removing the valve. The sleeve, available in several colors, facilitates process line identification.The handle can also be configured with position detection solutions: 0, 1 or 2 cylindrical M12 sensors for on/off detection or MVQ IO-Link rotary linear sensor enabling continuous valve position monitoring




A second handle version, called the micrometric handle, is also available. It provides an alternative enabling even finer operation and precise, repeatable valve position adjustment, particularly suited for applications requiring accurate flow control.

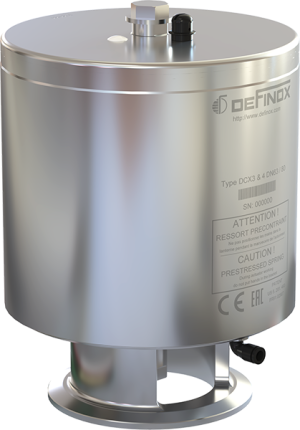

Actuator

MECA DCX3

Maintenance document number : NM251

Actuators are available for individual purchase to enable modular component stocking or quick replacement during maintenance operations, without requiring full valve replacement.Repairable pneumatic actuator designed for DEFINOX DCX3, DCX4 and NEOS valves. The actuator is supplied without the valve disc and clamp, but with the seal carrier plate, common to all variants to ensure interchangeability.Available in single-acting (normally closed or normally open), double-acting, and long-stroke versions depending on valve configurations.


5-year manufacturer warranty, in accordance with the terms defined in the warranty document.

Actuator

MECA DCX4

Maintenance document number : NM251

Actuators are available for individual purchase to enable modular component stocking or quick replacement during maintenance operations, without requiring full valve replacement.Repairable pneumatic actuator designed for DEFINOX DCX3, DCX4 and NEOS valves. The actuator is supplied without the valve disc and clamp, but with the seal carrier plate, common to all variants to ensure interchangeability.Available in single-acting (normally closed or normally open), double-acting, and long-stroke versions depending on valve configurations.


5-year manufacturer warranty, in accordance with the terms defined in the warranty document.

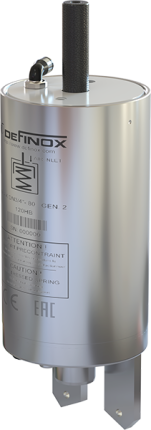

Actuator

MECA DPAX

Maintenance document number : NM039

Actuators are available for individual purchase to enable modular component stocking or quick replacement during maintenance operations, without requiring full valve replacement.Repairable pneumatic actuator designed for DEFINOX DPAX butterfly valves. The actuator is supplied with an integrated detection cam and welded mounting brackets enabling direct installation onto the valve drive square, with mounting identical to previous generations to ensure interchangeability.Depending on the selected configuration, the actuator can be delivered pre-equipped with a SORIO Basic wired control unit or SORIO control tops in wired, AS-i or IO-Link versions for valve position monitoring and control.Available in single-acting (normally closed or normally open depending on the drive square orientation) or double-acting versions. Actuators are available in GEN2 for sizes from ¾" to DN100 (DN104 included) and in GEN1 for DN125 and DN150.



5-year manufacturer warranty, in accordance with the terms defined in the warranty document.

Actuator

MECA DPAX Between Flange

Maintenance document number : NM222

Actuators are available for individual purchase to enable modular component stocking or quick replacement during maintenance operations, without requiring full valve replacement.Repairable pneumatic actuator designed for DEFINOX DPAX EBC butterfly valves. The actuator is supplied with an integrated detection cam and mounting brackets enabling direct installation onto the valve drive square, with mounting identical to previous generations to ensure interchangeability.Depending on the selected configuration, the actuator can be delivered pre-equipped with a SORIO Basic wired control unit or SORIO control tops in wired, AS-i or IO-Link versions for valve position monitoring and control.Available in single-acting (normally closed or normally open depending on the drive square orientation) or double-acting versions. Actuators are available in GEN2 for sizes from ¾" to DN100 (DN104 included) and in GEN1 for DN125 and DN150.



5-year manufacturer warranty, in accordance with the terms defined in the warranty document.

Actuator

MECA NEOS

Maintenance document number : NM270

Actuators are available for individual purchase to enable modular component stocking or quick replacement during maintenance operations, without requiring full valve replacement.Repairable pneumatic actuator designed for DEFINOX DCX3, DCX4 and NEOS valves. The actuator is supplied without the valve disc and clamp, but with the seal carrier plate, common to all variants to ensure interchangeability.Available in single-acting (normally closed or normally open), double-acting, and long-stroke versions depending on valve configurations.


5-year manufacturer warranty, in accordance with the terms defined in the warranty document.

Actuator

MECA VEOX

Maintenance document number : NM272

Actuators are available for individual purchase to enable modular component stocking or quick replacement during maintenance operations, without requiring full valve replacement.Repairable pneumatic actuator designed for DEFINOX VEOX mixproof valves (VEOX, VEOX PMO, VEOX 3-body and VEOX tank bottom versions). The actuator is supplied with the lift-off actuator integrated, without the valve disc and clamp, but with the seal carrier plate, common to all variants to ensure interchangeability.Available only in single-acting normally closed version. Depending on the selected configuration, the actuator can be delivered pre-equipped with a SORIO Basic wired control unit or SORIO control tops in wired, AS-i or IO-Link versions for valve position monitoring and control.


5-year manufacturer warranty, in accordance with the terms defined in the warranty document.
