Between flanges
DPX manual between flange
The Definox DPX EBC flanged manual butterfly valve is a shut-off valve. Efficient and hygienic in design, the DPX EBC allows fluid to pass without retention. Its design with compact flanges facilitates disassembly and maintenance operations. Added to its patented seal technologies, the DPAX EBC provides a reduced OPEX cost. Equipped as standard with a 5-position stainless steel handle + 2 intermediate positions, the DPX EBC is also available with micrometric handle, trigger, padlockable option and position detection.
Product advantages
-
From DN3/4'' to DN150 (DN200 on demand)
SMS, DIN or US sizes.
-
Oring seals
- Allowing the sealing between the half-body and the flange.
-
Handles for numerous applications
- All stainless steel handle with customizable sleeve
- Lockable with padlock Ø6.5 mm (LOTO – Lock Out / Tag Out)
- Available with trigger version
- 5 intermediate positions + open / closed positions

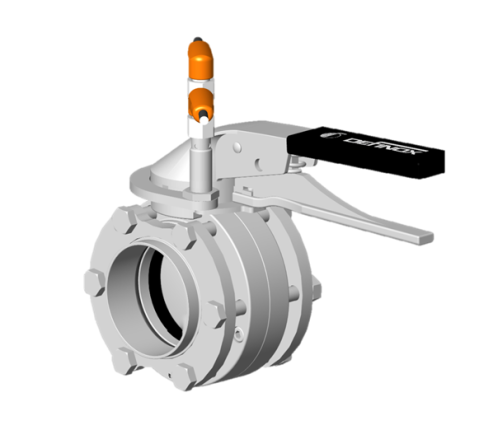

- Compatible with position detection options
-
Use in numerous applications
- EPDM
- FKM
- HNBR.
-
Compact flanges
- Fast and simple disassembly.
Find your ideal product
Select at least 3 conditions and generate the list of corresponding items

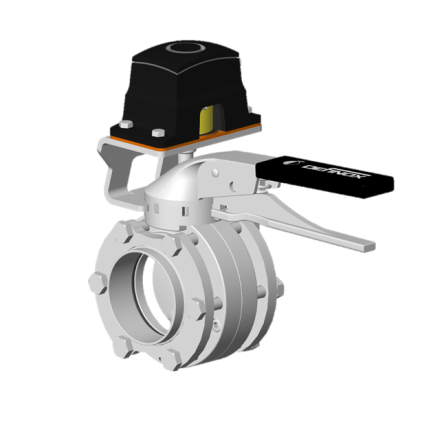

Controlling and signaling
Selected elements are delivered assembled on the valve. The assembly and adjustments are included in the price.
You are almost done !
The 2.1 certificate is delivered with your order. Would you like to add another certificate ?
Select a certificate…
Benefits
No retention
Flow without retention.
Low Druck drop
Easy maintenance
Quick and easy disassembly and assembly.
