Optimal cleanability
Optimum cleaning, thanks to its PFA floating seal.
Are you sure you want to perform this action?
![[DCX3_ASEPTIC]](https://eshop.definox.com/media/cache/sylius_shop_product_extralarge_thumbnail/09/8b/098bb1bce6ebcbf102f37af6fd073b0af239b138_Vanne____clapet_DCX3__Sorio_presse___toupe.png)
![[DCX3_ASEPTIC]](https://eshop.definox.com/media/cache/sylius_shop_product_extralarge_thumbnail/cb/70/cb70fe7d795a6018ad4c8cbf5759e5eb526222d6_membrane_DCX3.png)
![[DCX3_ASEPTIC]](https://eshop.definox.com/media/cache/sylius_shop_product_extralarge_thumbnail/d4/c7/d4c782cb7ef9eca81cb42aa4b2e547477f03c44b_membrane_DCX3_sch__ma.png)
![[DCX3_ASEPTIC]](https://eshop.definox.com/media/cache/sylius_shop_product_small_thumbnail/09/8b/098bb1bce6ebcbf102f37af6fd073b0af239b138_Vanne____clapet_DCX3__Sorio_presse___toupe.png)
![[DCX3_ASEPTIC]](https://eshop.definox.com/media/cache/sylius_shop_product_small_thumbnail/cb/70/cb70fe7d795a6018ad4c8cbf5759e5eb526222d6_membrane_DCX3.png)
![[DCX3_ASEPTIC]](https://eshop.definox.com/media/cache/sylius_shop_product_small_thumbnail/d4/c7/d4c782cb7ef9eca81cb42aa4b2e547477f03c44b_membrane_DCX3_sch__ma.png)
Aseptic isolation
DCX3 Aseptic

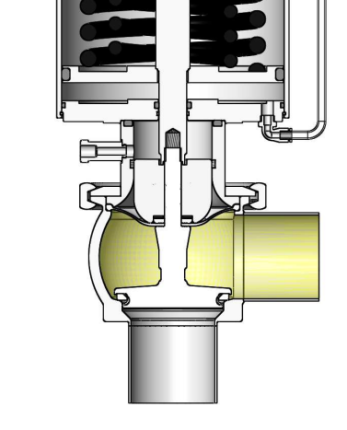

The Definox DCX3 aseptic single seat valve is a shut-off valve dedicated to sterile processes. It is equipped with a deformable membrane ensuring physical protection between the process and contamination from the atmosphere. Its patented seal technologies allow the DCX3 aseptic to have quick maintenance and reduced OPEX costs. Equipped with a single-acting pneumatic actuator (NO/NC), it can be fitted with a SORIO control top.
Product advantages
-
From DN25 to DN100 (DN125 and DN150 on demand)
- SMS, DIN or US sizes.
-
One-piece plug with PFA floating seal
- Sturdy design, avoiding any risk of breakage or unscrewing
- PEEK plug variant for steam and chemical applications.
-
Mass-machined spherical body
- Configurations available: L, T, cross or half-cross body.
-
Use in numerous applications
- Various sealing solutions: PFA, elastomer, metal metal
- Numerous connections: SMS, DIN, Clamp
-
Elastomer sealing
- EPDM or FKM
- Adapted to abrasive or loaded products
-
Optimal flow management with the reverse version
- Extended body configuration, with L/L body
- Available in elastomer version, EPDM or FKM seal.
- Simple integration to the existing process lines.
-
Long stroke version
- Maximum plug clearance
- Adapted to fibrous or fragile fluids as well as big particles.
-
Serviceable actuator
- Easily transformable Normally Open NO, Normally Closed, Double Acting DA.
-
Manual version
Find your ideal product
Select at least 3 conditions and generate the list of corresponding items
Controlling and signaling
Selected elements are delivered assembled on the valve. The assembly and adjustments are included in the price.
You are almost done !
The 2.1 certificate is delivered with your order. Would you like to add another certificate ?
Select a certificate…
Benefits
One-piece plug
Sturdy, conform to sanitary requirements.
Spherical body
Mass-machined spherical body guaranteeing high resistance against expansion stresses.
No risk of tampering
No risk of alteration of taste or appearance of the process fluid in contact with the PFA.
Chemical resistance
Excellent resistance against chemical agents and high temperature.
Modular design
Modular design thanks to the interchangeability of the components.
Easy maintenance
Easy maintenance, thanks to clamped subassemblies.
Our services
Definox customer service supports you at each step offering maintenance and training services.You gain in intervention autonomy for all ofyour valves; the availability of your process lines is optimized.Definox is a training organization certified QUALIOPI (French quality training certification).
services
Maintenance
The sustainable design of Definox valves alllows you to carry out complete valve maintenance. Spare parts are available for all generations of valves. Going beyond the sale of standard replacement parts, specialized tools that ensure the safety of your operator's are also available. Our customer service supports you in organizing your preventative maintenance operations giving you greater control and availability of your process lines.
services
Training
Our training programs answer to expectations of both distributors and end customers. Our trainings cover the full range of standard valves.
