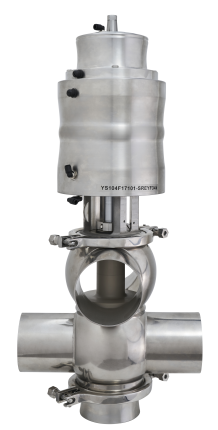

Mix proof valves double seat VEOX
VEOX Two Different Line Sizes
The Definox VEOX two different line sizes mixproof is a leak chamber valve is a leak chamber valve with no loss of product when opening. VEOX integrates a physical break between two circuits. This technology makes the crossing of two fluids of different nature possible in complete safety with visualizing an eventual leak. Flipping the valve plugs ensures complete cleaning without opening the valve. The two different line sizes version allows you to combine up to four gap diameters, between the upper track and the lower track (depending on the body configurations). Complete cleaning of the balancer, efficient sealing solutions, quick disassembly and serviceable actuator allow the VEOX to offer perfect cleanability and reduced cost of use. It can be fitted with a Sorio control top.
Product advantages
-
From DN 25 to DN 150
- SMS, DIN or US sizes
- DN 150, on request
-
Piggable on lower line
Requesting a modification of the body and the lower plug.
-
Multi size bodied version
- Allowing the combination of up to 2 diameters difference between the higher and lower lines
- No risk of fragility.
-
Solid machined balancer
- Offering good resistance against water hammer
- Cleaning of the outer face of the balancer avoiding risk of contamination
- No clogging on sticky applications.
-
Solid machined balancer
- Offering good resistance against water hammer
- Cleaning of the outer face of the balancer avoiding risk of contamination
- No clogging on sticky applications.
-

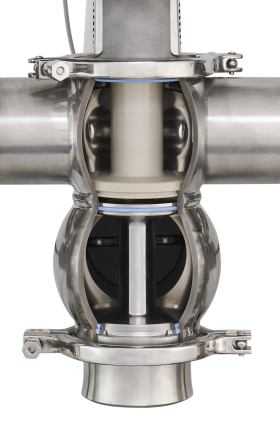

PEEK plug for extreme conditions
- Withstand a pressure of up to 13 bar, even with high temperature
- Continuous steam sterilization
- Suitable for sticky products (no interplug seal).
-
22 solid machined bodies configurations
Guaranteeing a high level of resistance to mechanical and thermal distorsion.
-
No special tooling for maintenance
- Less than 2 minutes to disassemble the lower plug and replace the seal
- Quick, simple servicing thanks to clamp collar
- Ensuring immediate response and power of the plug movements.
-
Sliding radial seal on the lower plug, with stainless steel insert
- Pressure and temperature performances improved
- Better seal stability, limiting its expansion.
Find your ideal product
Select at least 3 conditions and generate the list of corresponding items
Controlling and signaling
Selected elements are delivered assembled on the valve. The assembly and adjustments are included in the price.
You are almost done !
The 2.1 certificate is delivered with your order. Would you like to add another certificate ?
Select a certificate…
Benefits
Costs under control
Maintenance costs under control.
Extreme conditions
Adapted for extreme operating conditions, up to 13 bars.
Availability of the lines
Easy maintenance, longer availability of the lines.
Optimum cleaning
Optimum cleanability thanks to the plugs lifting.
Hygienic and secured
Hygienic and secured design (cleaning of the balncer exterior face).
Flexibility of the fleet of valves
Flexibility of the fleet of valves installed thanks to the upper plugs modularity.
Reduction in product loss
30% reduction in product loss during plugs lifting.
Optimization of the lines
Optimization of the lines thanks to multisize bodied and 3 bodies versions.
