Between flanges
DPAX Between Flange

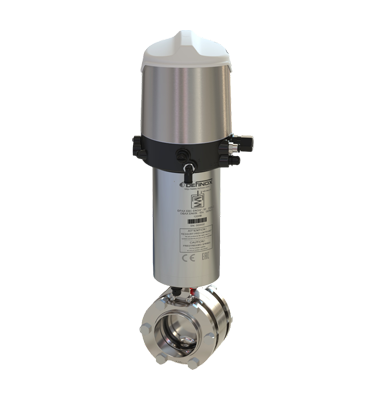

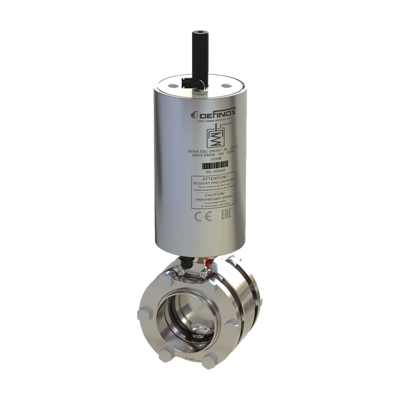

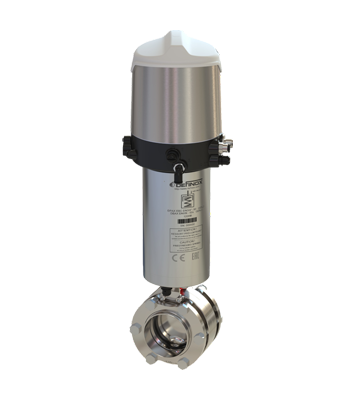

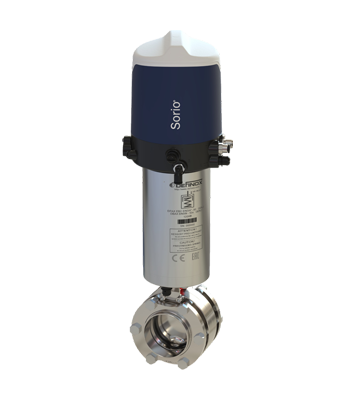

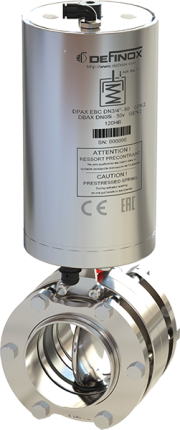

The Definox DPAX EBC flanged pneumatic butterfly valve is a shut-off valve. Efficient and hygienic in design, the DPAX EBC allows fluid to pass without retention. Its design with compact flanges facilitates disassembly and maintenance operations. Added to its patented seal technologies, the DPAX EBC provides a reduced OPEX cost. Easily convertible to NO or NC and equipped with a single-acting pneumatic actuator, the DPAX EBC can be fitted with a SORIO control top.
Product advantages
-
From DN25 to DN150
- SMS, DIN or US version.
-
Oring seals
- Allowing the sealing between the half-body and the flange.
-
Handles for numerous applications
- Stainless steel handle with customized sleeve
- With detection
- Lockable
- Multiposition.
-
Serviceable actuator
- Easily transformable into Normally Open (NO), Normally Closed (NC) or Double Acting (DA)
- Switch from NO to NC: quarter-turn of the disc in open position before replacing the actuator.
Find your ideal product
Select at least 3 conditions and generate the list of corresponding items
Controlling and signaling
Selected elements are delivered assembled on the valve. The assembly and adjustments are included in the price.
You are almost done !
The 2.1 certificate is delivered with your order. Would you like to add another certificate ?
Select a certificate…
Benefits
No retention
Flow without retention.
Low Druck drop
Easy maintenance
Quick and easy disassembly and assembly.
