Welded and connections
DPAX

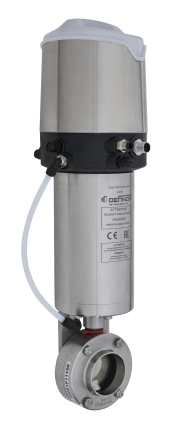

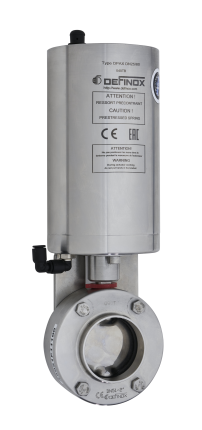

The Definox DPAX pneumatic butterfly valve is a shut-off valve. Efficient and hygienic in design, the DPAX allows fluid to pass without retention. Its patented seal technologies allow the DPAX to have quick maintenance and reduced OPEX costs. Easily convertible to NO or NC and equipped with a single-acting pneumatic actuator, the DPAX can be fitted with a SORIO control top.
Product advantages
-
From DN3/4'' to DN150 (DN200 on demand)
SMS, DIN or US sizes.
-
Use in numerous applications
- EPDM
- FKM
- HNBR.
-
Various handles for all uses
- Stainless steel handle with customized sleeve
- Micrometric handle
- With detection
- Lockable
- Multiposition.
-
Easy integration on process lines
- Liner or threaded part
- Mass machined clamp
- Between flanges
- Unions according to norm DIN 11851 or aseptic DIN 11864.
-
IO-Link version
- Simple adaptation of MVQ IO-Link sensor on the handle
- Autodiagnostic.
-
Serviceable actuator
- Easily transformable into Normally Open NO, Normally Closed NC or Double Acting DA.
- Switch from NO to NC: quarter-turn the disc in open position before replacing the actuator.
-
Simple regulation function
- From 4/20 mA positioner.
Find your ideal product
Select at least 3 conditions and generate the list of corresponding items
Controlling and signaling
Selected elements are delivered assembled on the valve. The assembly and adjustments are included in the price.
You are almost done !
The 2.1 certificate is delivered with your order. Would you like to add another certificate ?
Select a certificate…
Benefits
In-line flow
Flow without retention.
Expansion stress resistance
High resistance against distortion stresses.
Excellent seals lifetime
Excellent seals lifetime.
Adaptability
Great adaptability thanks to various operating devices.
Fast disassembly and assembly
Fast assembly and disassembly.
Our services
Definox customer service supports you at each step offering maintenance and training services.You gain in intervention autonomy for all ofyour valves; the availability of your process lines is optimized.Definox is a training organization certified QUALIOPI (French quality training certification).
services
Maintenance
The sustainable design of Definox valves alllows you to carry out complete valve maintenance. Spare parts are available for all generations of valves. Going beyond the sale of standard replacement parts, specialized tools that ensure the safety of your operator's are also available. Our customer service supports you in organizing your preventative maintenance operations giving you greater control and availability of your process lines.
services
Training
Our training programs answer to expectations of both distributors and end customers. Our trainings cover the full range of standard valves.
