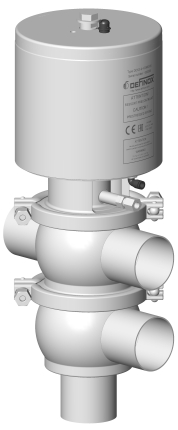

Divert valve DCX4
DCX4 Aseptic Steam Actuator
The Definox DCX4 steam barrier single seat valve is a divert valve dedicated to sterile processes. It is equipped with a device ensuring the sterilization of the valve stem in contact with the outside and the process and thus guarantees protection against atmosphere contamination. Its patented seal technologies allow the DCX4 Steam Bearing to have quick maintenance and reduced OPEX costs. Equipped with a single-acting pneumatic actuator (NO/NC), it can be fitted with a SORIO control top.
Product advantages
-
From DN25 to DN150
- SMS, DIN or US sizes.
-
One-piece plug with PFA floating seal
- Sturdy design avoidant any risk of breakage or unscrewing.
-
Mass-machined spherical body
- Body configurations available: L/L, L/T, T/L, T/T, L/X.
-
Control Top & Signalling
- From the SORIO 1EV control unit, available in digital, AS-i or IO-Link versions.
- Compatible with SORIO Basic 1EV digital or secure M12 bracket sensor
-
Elastomer sealing
- EPDM or FKM
- Adapted to abrasive product or loaded fluids.
-
Serviceable actuator
- Easily transformable: Normally Open NL, Normally Closed NC or Double Acting DA.
Find your ideal product
Select at least 3 conditions and generate the list of corresponding items
Controlling and signaling
Selected elements are delivered assembled on the valve. The assembly and adjustments are included in the price.
You are almost done !
The 2.1 certificate is delivered with your order. Would you like to add another certificate ?
Select a certificate…
Benefits
Expansion stress constraints
High resistance against distortion stresses.
Interchangeability
Interchangeability of the components.
No risk of alteration
No risk of alteration of taste or appearance of the process fluid in contact with the PFA.
Resistance against chemical products
Excellent resistance against chemical products and high temperature.
Easy maintenance
Easy maintenance, thanks to clamped subassemblies.
